DRAINmasta Strip Drain rectifies drainage issue alongside motorway embankment

DRAINmasta Strip Drain rectifies drainage issue alongside motorway embankment

Easy drainage with strip filter drain



The challenge

This steep embankment alongside Sydney’s busy M4 Motorway was identified as being unstable and susceptible to erosion. The embankment was exposed without any vegetation cover, and our clients were engaged to remediate the area.

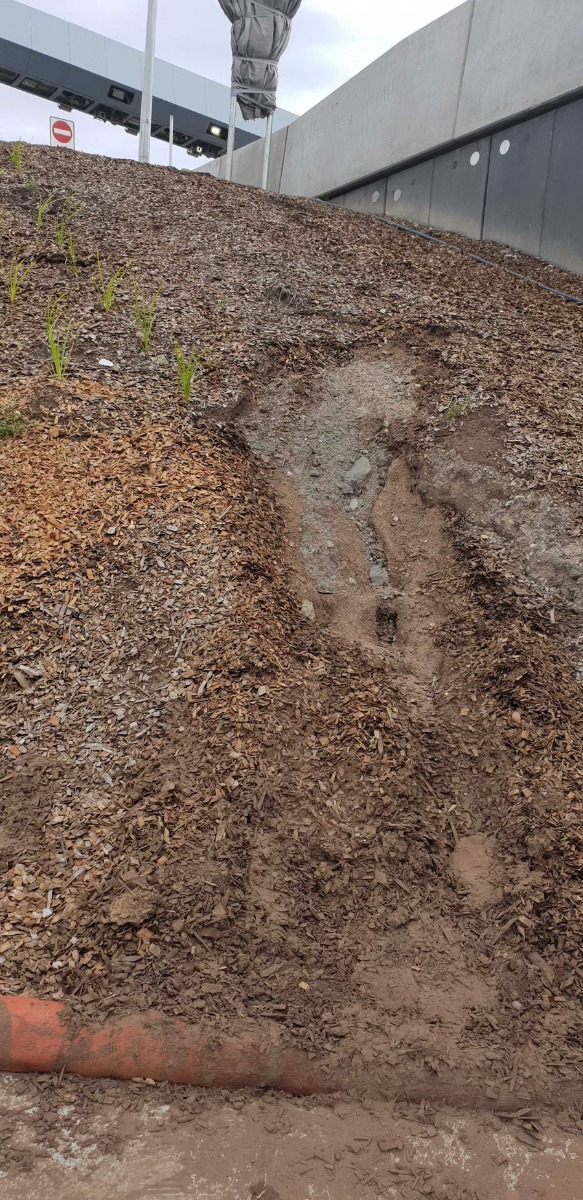

Strip drainThe steep grade presented a difficult drainage situation as shown in this image.

In order to slow the flow of rainwater down the embankment, the project managers sought a drainage solution that was easy to install and would offer long term protection against erosion and deterioration of the site.

The solution

Our client chose DRAINmasta Strip Drain from GEOmasta: a prefabricated composite product designed to effectively filter and transport groundwater. It is a lightweight alternative to aggregate drainage treatments and provides an efficient and non-invasive drainage solution.

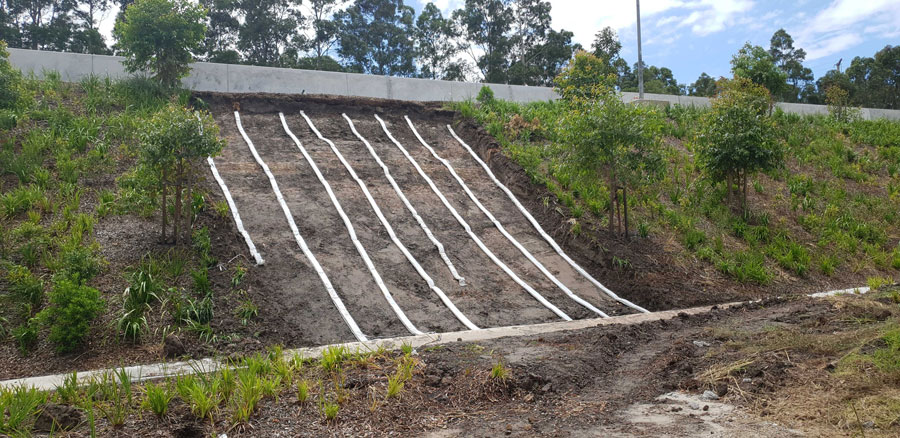

In this instance, it has been used in conjunction with mastaGRID Poly and COIRmasta coir logs to safeguard against future erosion issues. The poly geogrid provides soil stabilisation, and coir logs have been placed at specific intervals to slow the flow of rainwater down the slope. This has ultimately created a stable and healthy environment, enabling plants to become established. The vegetation is now providing its own layer of erosion control.

DRAINmasta Strip Drain is designed for subsoil drainage in areas such as road revetments, sports field drainage, behind shotcreting in tunnels or, as seen here, in steep embankment applications. It is produced by binding a tough HDPE drainage core with mastaTEX Non-woven high flow geotextile. This prevents foreign particles from entering the drain and thereby avoids blockages and flow issues.

With a discharge capacity of over 100 L/m/min, DRAINmasta Strip Drain is a simple yet highly effective drainage solution. It is available in 50 metre rolls in 100, 200 or 300mm widths to suit different site applications.



A Full Range Of Drainage And Revegetation Solutions

In addition to drainage products such as Strip Drain, the supporting GEOmasta range encompasses a wide range of drainage, erosion control and landscaping supplies. The range includes geotextiles, geogrid, ag pipe, seed mat, hessian, coir and jute products and tree planting supplies.

The friendly GEOmasta team are on hand to assist with professional and knowledgeable advice. We are committed to getting your order delivered on time and on budget, enabling you to complete your project quickly and easily.
